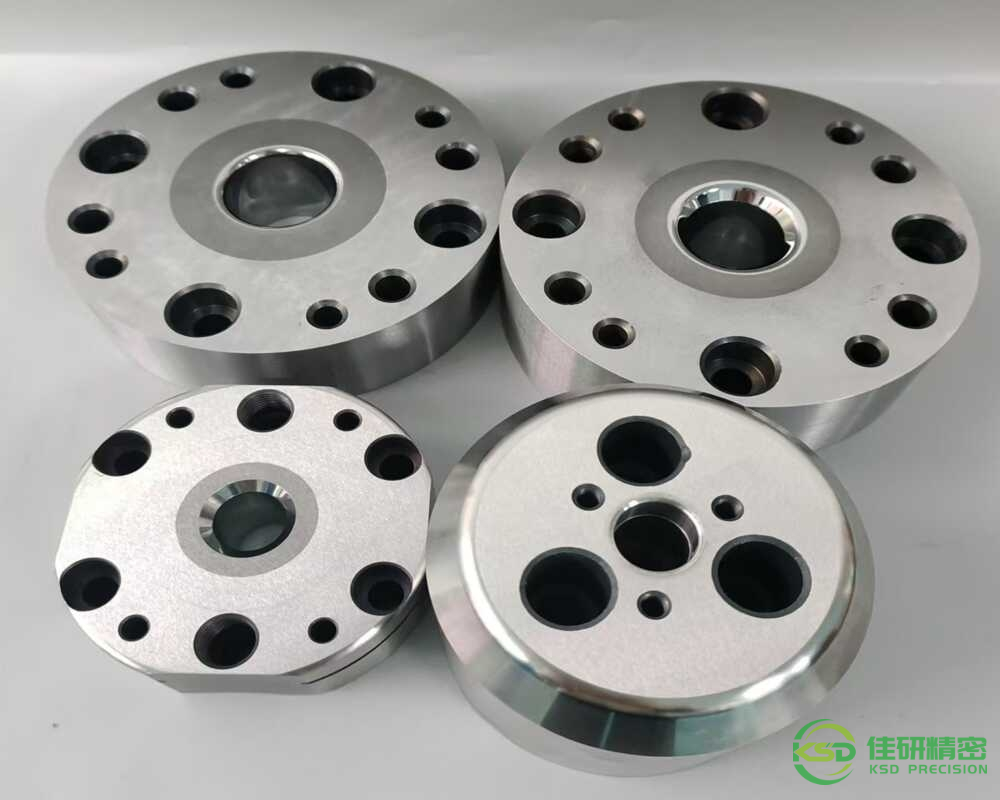

Carbide-Inlaid Die (SKD61 + Tungsten Carbide)

Material: SKD61 (Base) + Tungsten Carbide (Inlay)

Hardness: HRA 88–90 (Carbide), HRC 40–45 (Steel Body)

Finish: As-Machined / Raw

Processing: Hot-Press Inlaying + ID/OD Cylindrical Grinding + Mirror Polishing

Key Advantages
Dual-Material Performance: Combines a tough, flexible steel core to absorb shock with an ultra-hard carbide surface to resist wear.

Extended Service Life: The mirror-polished tungsten carbide insert ensures low friction and maximum production longevity.

Cost-Effective Design: Localized carbide inlaying optimizes material usage, delivering premium performance at a reduced cost.
